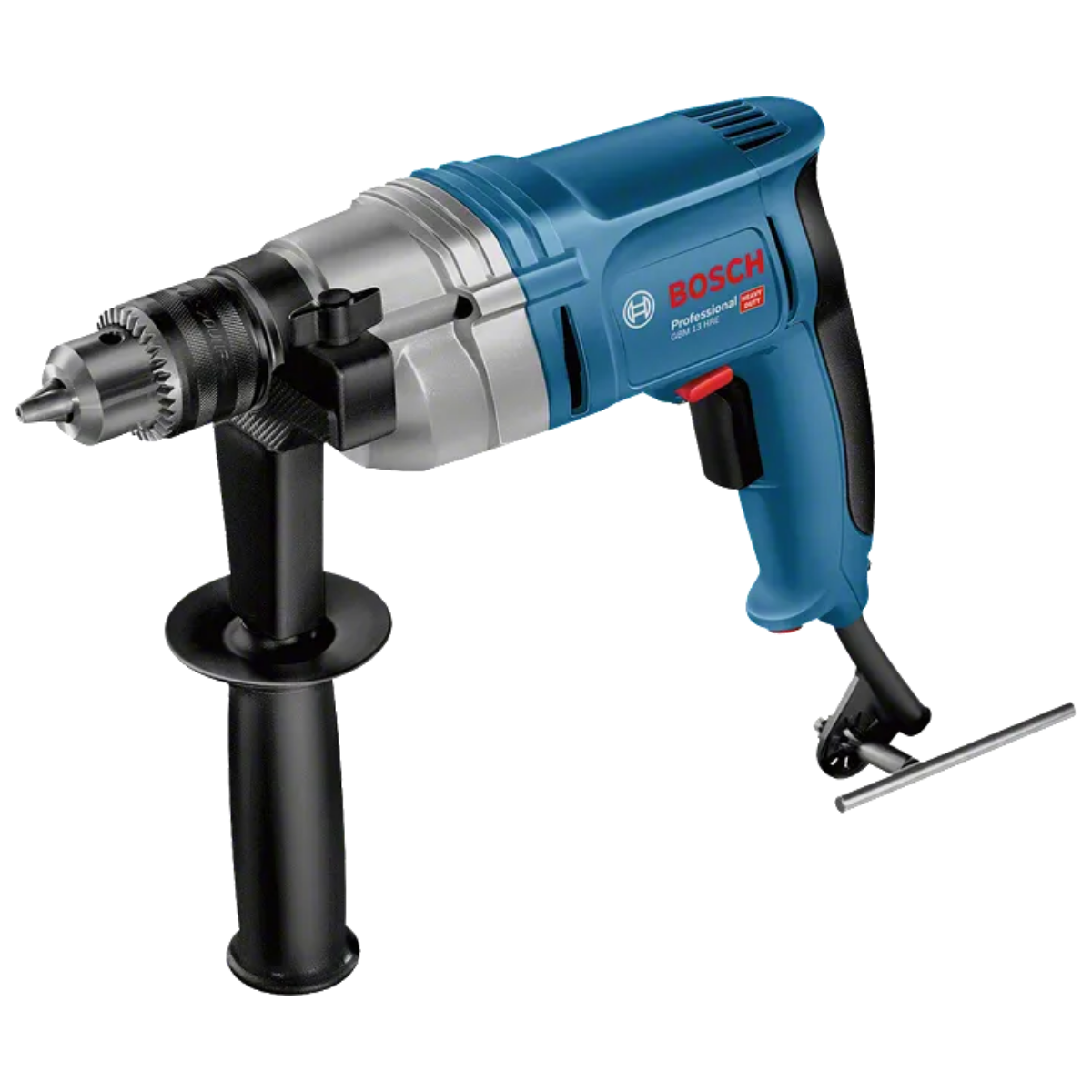

Bosch Drill GBM 13 HRE

Positioning

• Powerful 1-geared rotary drill with robust performance

User benefit

• Strong 550 W motor delivers the power necessary for tough drilling applications
• Triple reduction gears, high torque of 60 Nm for a wide range of applications, drilling even the largest hole diameters
• Highly durable due to cut gears and ball and needle bearings as well as a robust metal gear housing

Product Highlights

• The GBM 13 HRE Professional is a powerful corded 1-geared rotary drill designed for robustness. Its strong 550 W motor delivers the power necessary for tough drilling applications. This rotary drill’s triple reduction gears and high torque of 60 Nm are capable of drilling even the largest hole diameters in various materials, enabling work in a wide range of applications. It is also designed for maximum durability, featuring cut gears and ball and needle bearings as well as a robust metal gear housing.

Equipment & Application

• This tool is intended for drilling in metal and wood.

Additional Information

• The GBM 13 HRE Professional also includes features such as right-left rotation, speed selection, and variable speed.

Technical Information

Technical data

Rated input power	550 W
No-load speed, 1st gear	0 – 550 rpm
Power output	285 W
Weight	2.1 kg
Rated speed	380 rpm
Rated torque	5.0 Nm
Tool dimensions (width)	89 mm
Tool dimensions (length)	300 mm
Tool dimensions (height)	248 mm
Max. torque	60.0 Nm
Voltage, electrical	230 V

Drilling range

Drilling diameter in aluminium	20 mm
Drilling diameter in wood	40 mm
Drilling diameter in steel	13 mm

Noise/vibration information

Noise level

The A-rated noise level of the power tool is typically as follows: Sound pressure level 84 dB(A); Sound power level 95 dB(A). Uncertainty K= 5 dB.
